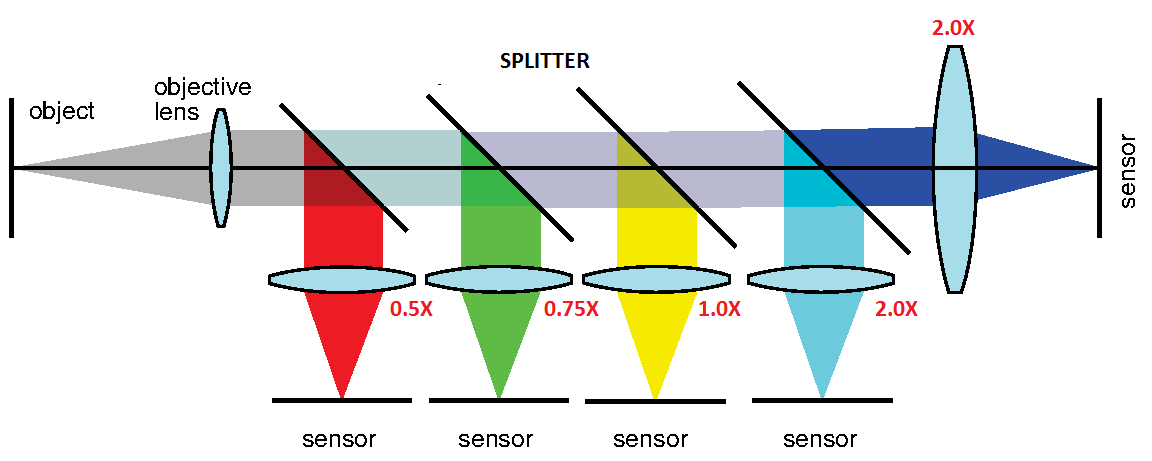

Light travels through the body tube as parallel rays as it passes through the objective. These are focused by the tube lens to form a completely aberration-free intermediate image.
Co-axial unit
Infinity-corrected objective lens adapters
High Contrast image
Suitable for high precision alignment and inspection
MODEL | MAGNIFICATION |
WAVELENGTH |
IMAGE SENSOR |
MOUNT |
YAG-TUBE-0.5X | 0.5X |
400-700 nm |
18 |
C-Mount |
YAG-TUBE-0.75X | 0.75X |
400-700 nm |
18 |
C-Mount |
YAG-TUBE-1.0X | 1.0X |
400-700 nm |
18 |
C-Mount |
YAG-TUBE-1.5X | 1.5X |
400-700 nm |
18 |
C-Mount |
YAG-TUBE-2.0X | 2.0X |
400-700 nm |
18 |
C-Mount |
YAG-TUBE-1.0X-44 | 1.0X |
400-700 nm |
44 |
F-Mount |
